ID # 38912492

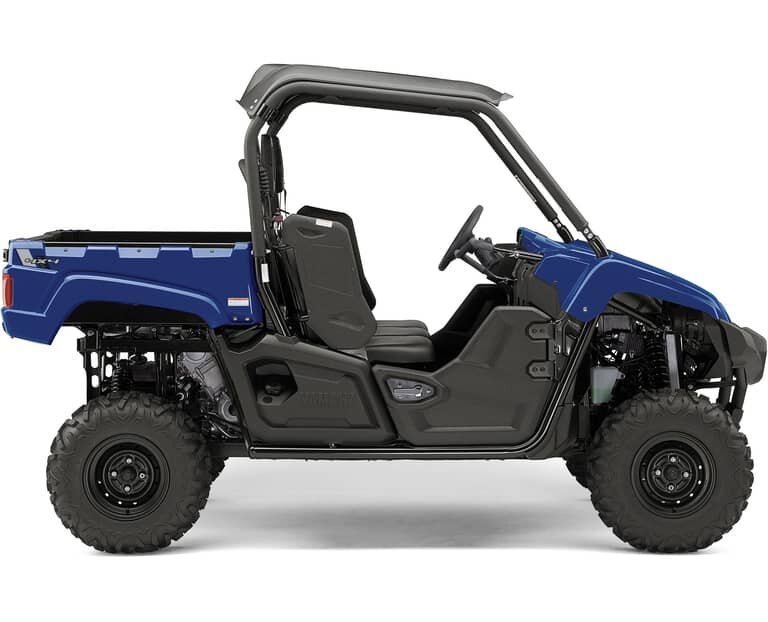

2025 Yamaha VIKING Yamaha Blue

Name: 2025 Yamaha VIKING Yamaha Blue
Brand: Yamaha
Availability: OutOfStock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

COMFORTABLE, CAPABLE, CONFIDENT. Hard-working reliability, Real World off-road capability and plush cabin comfort, Yamaha delivers a true three-person Proven Off‑Road machine with Electric Power Steering.

Specifications

Model

VIKING

Category Name

UTV - Side x Side

Year

2025

Sale Type

New

Manufacturer

Yamaha

Color

Bleu Yamaha

engine

Engine

686cc, liquid-cooled, SOHC, 4-valve, single

IGNITION

TCI

Starting

Electric

FINAL DRIVE

Shaft

Lubrication

Wet sump

TRANSMISSION

Yamaha Ultramatic CVT with reverse & On-Command (2WD, 4WD limited slip, 4WD diff-lock)

FUEL DELIVERY

Mikuni 44mm throttle body F.I.

BORE AND STROKE

102mm x 84mm

Compression Ratio

10.0: 1

chassis

Tires (Rear)

AT25 x 10-12

BRAKES (REAR)

Dual 207 mm discs / twin piston calipers / Shaft mounted parking brake

Tires (Front)

AT25 x 8-12

BRAKES (FRONT)

Dual 207 mm discs / twin piston calipers

SUSPENSION (REAR)

Independent double wishbone with anti-sway bar / 205 mm (8.1") of wheel travel

SUSPENSION (FRONT)

Independent double wishbone / 205 mm (8.1") of wheel travel

highlights

ELECTRIC POWER STEERING

Speed and torque sensitive EPS provides optimal assistance in 2WD, 4WD and locked differential for increased ride comfort and less rider fatigue.

POWER & PERFORMANCE

The 686cc, fuel-injected single offers long, linear torque and power that is perfectly paired for utility applications perfectly.

UTILITY FOCUSED DESIGN

The Viking EPS offers an array of utility functions that include a sturdy steel dump-style bed, standard 2" receiver, rubber bed mat and 5 degree offset seating that offers improved rider comfort.

key features

686cc, liquid-cooled, SOHC, 4-valve, fuel injected single produces serious torque & horsepower.
Electric starting.
SOHC, 4-valve cylinder head design.
Ceramic composite plated cylinder uses "liner less" bores.
Lightweight short skirt forged aluminum piston.
Gear driven balancer shaft.

critical data

WIDTH

1,570 mm (61.8")

HEIGHT

1,925 mm (75.8")

LENGTH

3,100 mm (122")

WEIGHT

657 kg (1,448 lb)

Warranty

Private use - 1 year (unlimited mileage) Commercial use - 6 months (unlimited mileage)

Wheelbase

2,135 mm (84.1")

Bed Capacity

272 kg (600 lb)

FUEL CAPACITY

36.7 litres (8.1 Imp. Gal)

Turning Radius

4,500 mm (177")

Towing Capacity

680 kg (1,500 lb)

Ground Clearance

300 mm (11.8")

features & benefits

ENGINE

686cc, liquid-cooled, SOHC, 4-valve, fuel injected single produces serious torque & horsepower.
- engine has an excellent reputation for both durability & reliability
Electric starting.
- includes auto decompression system for fast, easy starts
SOHC, 4-valve cylinder head design.
- 2-intake (38 mm) & 2-exhaust (32 mm) valves provide maximum breathing efficiency
- screw & tappet style valve actuation for easier maintenance
Ceramic composite plated cylinder uses "liner less" bores.
- ceramic coating sprayed directly on the aluminum block, eliminating the liner & reducing weight
- excellent heat dissipation for consistent power delivery
- coating enhances the thin film of oil between the cylinder & piston, reducing friction & increasing power
Lightweight short skirt forged aluminum piston.
- lightweight design means faster engine response & less mechanical vibration
Gear driven balancer shaft.
- reduces engine vibration for good rider comfort
44 mm Mikuni throttle body fuel injection system with TPS & ISC.
- TPS (Throttle Position Sensor) is used to more precisely calculate the fuel injection quantity for optimum power &excellent throttle response at all rpms
- ISC (Idle Speed Control) helps ensure a steady idle even during warm up
- fuel injection benefits include: choke-free starting, steady idle during warm, good fuel economy & reduced emissions
High capacity air box with washable foam air filter.
- washable foam filter reduces tune-up costs
- high mounted intake duct helps prevent water ingestion
- no tools required drain
Yamaha's industry leading "Ultramatic" CVT (fully automatic) transmission with reverse & downhill engine braking.
- dual range, high - low transmission with reverse. Low range offers more "grunt" for towing or hauling heavy loads or when tackling technical terrain.
- CVT automatically selects the optimum transmission ratio, meaning you are always in the right "gear"
- Ultramatic design offers downhill engine braking for confidence inspiring control
- engine braking reduces brake wear & servicing, plus increases rider confidence & security
- Ultramatic design features a special centrifugal clutch which keeps constant tension on the V-belt to reduce belt wear since the belt does not slip as the clutches engage
- high mounted belt cooling ducts help prevent water ingestion
- V-belt housing has a "no tools required" drain plug
- automotive style, gated, 4-postion shifter (high, low, neutral, reverse)
- automotive style park brake lever with warning light & buzzer
Super convenient, servo motor controlled, On Command drive mode system.
- On Command drive system features 3 modes: 2wd, 4wd limited slip & 4wd differential lock
- On Command drive system lets you select the best mode for the conditions... not the machine
- 4wd differential lock provides equal power to all 4 wheels for maximum traction and "bite"
High capacity cooling system with electric cooling fan.
- maintains consistent engine temperatures for optimum performance
- rad is positioned high in the frame for protection
- engine overheat warning buzzer will sound as the engine is reaching maximum operating temperature to avoid overheating issues
Wet sump lubrication system with liquid cooled oil cooler.
- oil cooler helps consistent oil & engine temperatures for optimum performance
- spin-on type oil filter
Maintenance-free transistor controlled ignition (TCI).
- produces a strong spark for fast starts
- precise ignition timing / mapping for optimum engine performance at all rpms
Marine grade connectors on key electrical components.
Stainless steel exhaust header pipe & painted steel muffler with cleanable spark arrestor.
- spark arrestor prevents stray sparks from exiting the exhaust
- stainless steel design helps prevent rusting, steel muffler is painted
Air Injection System (AIS) injects fresh air into exhaust port to fully burn any unburnt fuel, reducing exhaust emissions.

Chassis

Rugged box section steel frame.
- compact design provides nimble, responsive handling
ROPS roll over protection structure (ROPS US OSHA/ISO3471)
Speed sensitive, rack & pinion-type, Electric Power Steering (EPS).
- significantly reduces steering effort resulting in less rider fatigue & improved rider comfort
- speed sensitive system; more assist at slower speeds, less assist at higher speeds for optimum control
- significantly reduces trail feedback through the steering wheel when a front wheel strikes an obstacle
- fully sealed EPS system (electrics & gears)
Independent double wishbone front suspension with "Wide Arc" A-arms.
- "Wide Arc" "A" arm design increases ground clearance in the centre of the machine
- high pressure nitrogen charged front shocks with progressive spring rates
- 205 mm (8.1") of front wheel travel
- heavy duty plastic A-arm & CV boot guards
- excellent rider comfort even on the toughest trails
Independent double wishbone rear suspension with anti-sway bar.
- utilizes anti-sway bar for optimum handling & reduced body roll
- high pressure nitrogen charged shocks with progressive spring rates
- 205 mm (8.1") of rear wheel travel
- heavy duty plastic A-arm & CV boot guards
300 mm (11.8") of ground clearance
Four-wheel hydraulic disc brakes.
- dual 207 mm (8.1") front rotors squeezed by twin piston calipers
- dual 207 mm (8.1") rear rotors squeezed by twin piston calipers
- pads feature wear indicator grooves for visual pad wear inspection
High-Performance MAXXIS tires.
- tire design enhances steering precision, ride comfort & traction
Extended range 36.7 litre fuel tank.
- low fuel warning indicator light in multi-function meter
Fully digital LCD multi-function meter assembly.
- functions include: speedometer, odometer, dual trip meters, fuel gauge, hour meter, clock, battery voltage display, On Command mode status, transmission gear indicator & various warning lights including seat belt & helmet reminders, plus an on board self-diagnosis function
- new, engine overheat warning buzzer will sound as the engine is reaching maximum operating temperature to avoid overheating issues
Roomy 3-person seating with 3-point seat belts & passenger hand holds.
- new, easy adjust seat belt design
- contoured bucket seats with padded headrests provide all day riding comfort
- centre seat is offset to provide lots of shoulder room
- 3-postion adjustable driver's seat (fore & aft), tools required
- high grip floor surface
- adjustable passenger hand hold for additional security, confidence & comfort
- specially designed foot wells keep passengers feet away from gas & brake pedals
Easy latch, rugged roto-molded plastic doors & shoulder bolsters
- added security & comfort for driver & passengers
- doors helps reduce mud & water splash from entering the cockpit
- shoulder bolsters help ensure driver & passengers stay inside the vehicle in the event of a roll over
Dual storage compartments & drink holders.
- glove box storage compartment
- central storage compartment (under dash board)
- multiple (4) drink holders
Convenient, 12 volt DC outlet.
- dash board mounted 10 amp / 120 watt, 12 volt DC outlet for work light, GPS, cell phone, etc..
Rugged plastic sun top.
Dump box style, steel cargo bed with 272 kg / 600 lb. capacity.
- steel-lined bed measures 1380 mm (54.3") wide x 925 mm (36.4") long x 315 mm (12.4") deep
- flat design for easy loading (can hold a traditional size pallet)
- hydraulic assist for easy operation
- dump box can be tilted from either the left or right side of the machine
- 4-tie down points inside the bed to secure cargo
- tail gate with dual latches
- rubber cargo bed mat reduces noise & helps hold load in place
Full length steel skid plate.
- underside of unit is fully protected by steel skid plate
- oil drain holes for both engine & rear differential for easy oil changes
- skid plate enhances terrain ability by allowing unit to slide more easily over obstacles
Dual 35 / 35 watt halogen headlights & dual taillights.
- headlights can be adjusted up & down
- dual tail lights with brake light function
Heavy duty, 2" receiver style trailer hitch mount.
- towing capacity is 680 kg (1,500 lbs.)
- maximum tongue weight is 50 kg (110 lbs.)
Aggressive styling.
- injection-molded body components resist damage
Low maintenance, sealed battery (battery should be charged during extended storage)
- convenient under hood location for protection & accessibility

Call for Price

Pricing excludes licensing and tax
